Timing Tool Kit for Mercedes Benz M282 1.3L

I. Product Positioning: Specialized Timing Tool Kit for Mercedes M282 Engine

The KunTai KT-3237 is a timing tool kit specifically engineered for the Mercedes M282 1.3T L4 engine (model 282914). It addresses the challenges posed by this compact turbocharged engine's "tightly packaged timing assembly and minimal clearance between valves and pistons." By solving the common pitfalls of universal tools – such as poor fitment and alignment inaccuracies that can lead to mechanical issues – it enables precise and stable timing calibration, helping to ensure valve timing aligns with factory specifications.

II. Scope of Application & Core Parameters

• Compatibility: Designed exclusively for the 1.3T L4 M282914 engine found in Mercedes A180L/A200L models. This engine is a key small-displacement turbocharged powerplant for Mercedes, featuring a densely arranged timing system.

• Specifications & Storage:

  • Package Dimensions: 365×280×85mm

  • Net Weight: 2.8kg

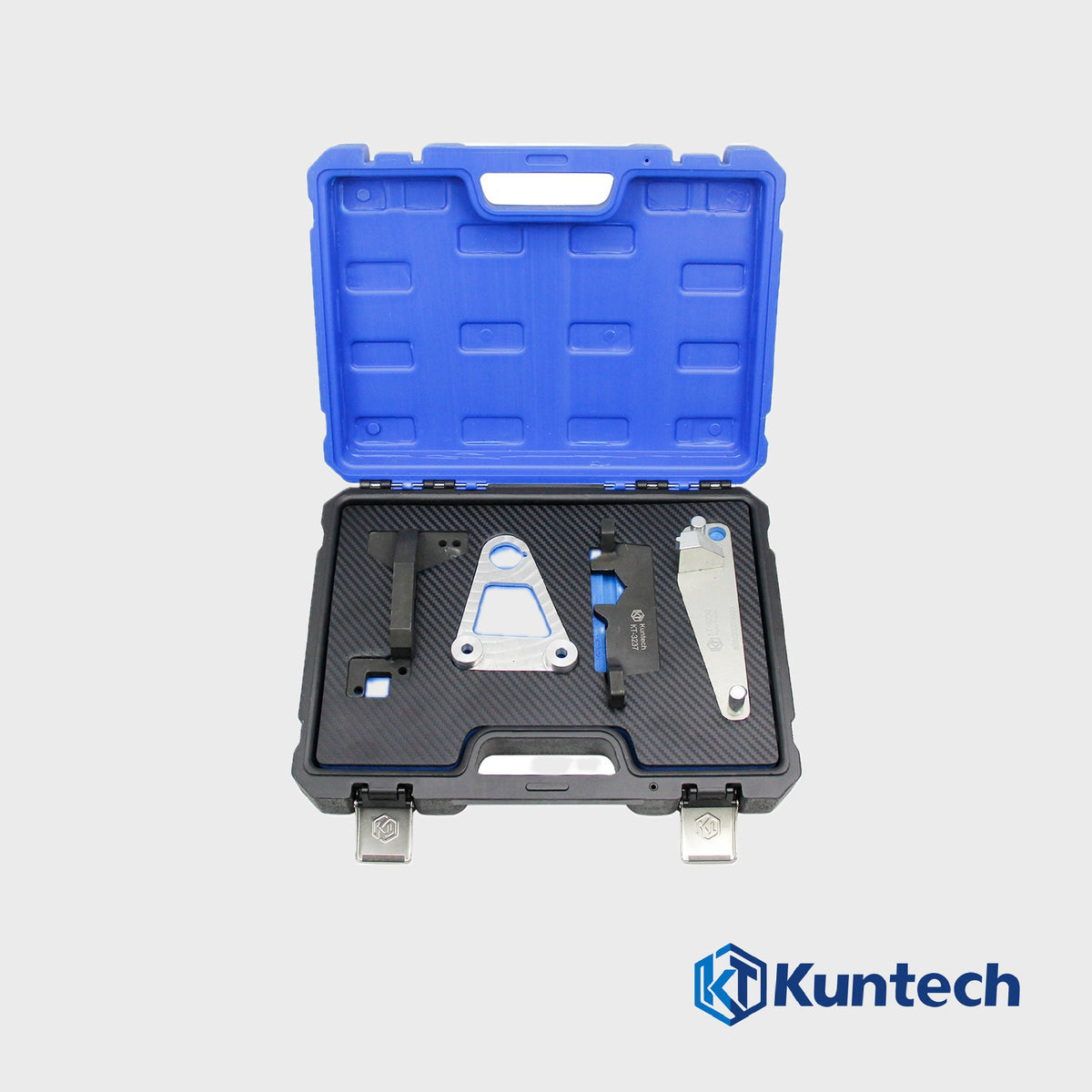

  • The kit is housed in a modular protective case, with components laid out logically for timing procedures on the M282 engine.

• Components & Material: Includes core components such as camshaft locking tools, crankshaft positioning tools, and auxiliary fixtures. The tools are constructed from high-strength alloy, offering a combination of light weight and resistance to deformation, suitable for the mechanical demands of working within the engine's confined spaces.

III. Technical Advantages: Engine-Specific Fit & Timing Security

• Precision Fit for Accurate Timing: The M282, being a small 1.3L turbo engine, has significantly less valve-to-piston clearance compared to larger engines. Even a minor timing deviation could potentially lead to valve and piston contact. The components of this kit are machined to match the specific contours of the M282's camshaft lock slots and crankshaft positioning hole, helping to securely lock the timing in the factory position and minimize the risk of misalignment associated with universal tools.

• Compact Design for Tight Spaces: The engine bay and timing cover area of the M282 are compact. Universal tools often lack the specific size and shape for proper engagement. This kit's dimensions and structure are tailored to the engine's workspace, allowing for flexible camshaft and crankshaft positioning, addressing a common pain point in confined areas.

• Standardized Operation, Lowering Skill Threshold: The kit's components have clearly defined functions (camshaft positioning, crankshaft locking). The procedure follows the official timing specifications for the M282 engine. This standardization can help less experienced technicians perform the "camshaft locking and crankshaft positioning" steps correctly. This approach can streamline the workflow compared to traditional methods reliant heavily on experience.

• Durable Construction for Professional Use: The high-strength alloy construction is designed to withstand the mechanical stress encountered during procedures like timing chain replacement or engine overhaul, helping to maintain positioning accuracy over long-term use.

IV. Application Scenarios: Core Repairs for the M282 Engine

Suitable exclusively for timing-related procedures on the Mercedes M282 (1.3T L4) engine:

• Timing Chain Replacement: Used for precise alignment when installing a new timing chain, typically recommended at 50,000 - 75,000 miles (approx. 80,000 - 120,000 km).

• Valve Train Service: Re-locks camshaft timing after valve or valve seal replacement, helping to ensure correct valve timing.

• Engine Overhaul: A critical tool for accurately aligning camshaft and crankshaft timing during engine reassembly.

V. Value Summary: Timing Security for Small Turbo Engines

• For the Repair Shop: Utilizing a specialized tool demonstrates expertise in servicing Mercedes' small-displacement turbo models and can help reduce the time and cost associated with rework due to timing errors.

• For the Technician: The precise fit in tight spaces and accurate positioning address concerns about improper tool engagement and potential valve damage, potentially boosting both confidence and efficiency.

• For the Vehicle Owner: Helps maintain the M282 engine's timing accuracy, potentially preventing serious issues like major engine damage or power loss due to incorrect timing, thereby supporting the long-term reliability of this small turbo engine.
